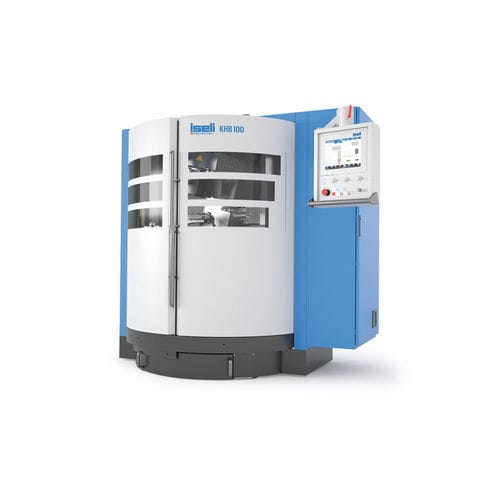

Circular saw blade sharpening machine KHB series

automatic

Machining of top and face surfaces in only one clamping. The zero point can be determined automatically by probing the grinding wheel on the saw tooth. Highlights Tooth face and tooth top are ground against the cutting edge. The space-saving machine concept enables for high ergonomics and excellent operability Blade feed from right to left, including radius tracking Optimal, fast and safe programming and setting of the circular saw parameters. The positioned saw tooth can be finish-ground in one or several passes by automatic down feed Grinding of all tooth geometries, incl. bevel and chamfering, in only one setting The bevel and chamfering grinding angles can be selected individually Application programs Tooth back Straight grinding Bevel grinding up to 45° / Chamfering Tooth height difference / triple-chip Group toothing up to 8 teeth Tooth face KHB 100 Straight grinding Carbide seat Tooth face KHB 110 Straight grinding Bevel grinding up to 30°
