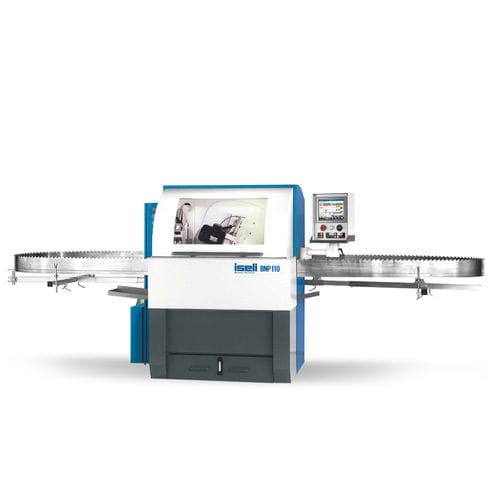

Automatic sharpening machine BNP 1102-axis
Add to favorites
Compare this product
Characteristics
- Control type
- automatic
- Number of axes
- 2-axis
Description
The BNP 110 combines the technology of the BNP 100 with the design of the BNP 200. The ergonomic machine housing allows electrically controlled saw blade height adjustment
Highlights
Profile-grinding of standard and Stellite-tipped band saw blades by means of CNC axes "X" & "Y" (several complete cycles of the band saw blade)
Use of linear roller guides for all CNC axes (stiffer engineering and maximized lifetime)
"LINUX Debian 10" control unit with multicore processor
Pneumatic saw blade clamping, with force relief during feed
Tooth profiles retrievable via control unit (standard memory for 99’999 tooth profiles)
Re-treated machine parts for longer service life and corrosion protection
Drive by means of servo motors with state-of-the-art safety control system
Large grinding wheel diameter of 350 mm
