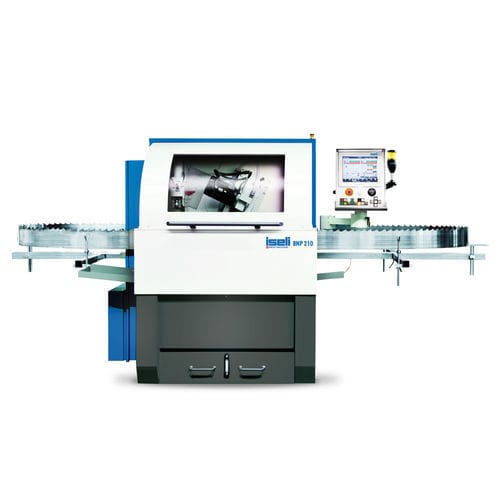

Automatic sharpening machine BNP 210 [G2]

CNC

The ISELI BNP 210 complements the advantages of the BNP 200 with a water-cooled grinding wheel motor and offers a large grinding wheel diameter of 400 mm as standard. Highlights Profile-grinding of standard and Stellite-tipped band saw blades by means of CNC axes "X" & "Y" (several complete cycles of the band saw blade) by means of CNC axes "W" & "Y" (grinding of the positioned and clamped saw tooth) Top/Face-grinding of Stellite- and Carbide-tipped band saw blades by means of CNC axes "W" & "Y" (grinding of the positioned and clamped saw tooth) Automatic set up of the saw Positioning the saw to the workpiece grinding position (automatic) Positioning the saw to the workpiece change position (automatic) Automatic recognition of the tooth group and measurement of the tooth pitch CNC controlled cutting angle Adjustment ("S" axis) Automatic probing of the grinding wheel at the saw tooth Automatic tooth shape tracing "Tooth Tracing System - TTS"
