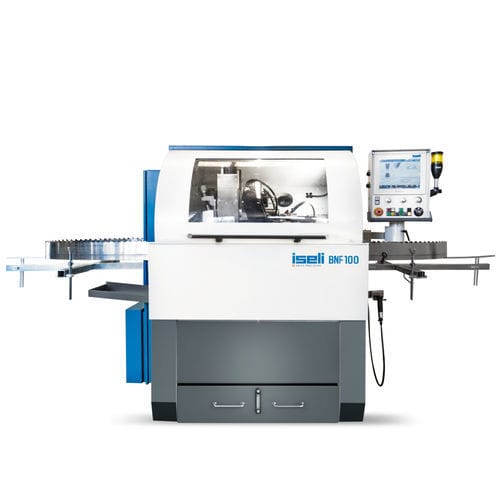

Blade grinding machine BNF 100

CNCautomatic4-axis

The BNF 100 is suitable for all band saw blades - including thin-cutting saws. The two stable grinding units with a grinding wheel diameter of 75, 100 or 125 millimetres ensure optimum cutting performance with high precision and grinding quality. Highlights Side-grinding of standard, Stellite- & Carbided-tipped band saw bladesmittels - by means of CHC axes "X", "Y" & "Z" (grinding of the positioned and clamped saw tooth) Automatic electrically controlled saw blade height adjustment Saw blade height stop for precise saw blade positioning Additional auxiliary pneumatic clamping at the saw tooth (for stabilizing thin saw teeth) "LINUX Debian 10" control unit with multicore processor Pneumatic saw blade clamping, with force relief during feed Automatic probing of the grinding wheels on the saw tooth Precision angle adjustment (nonius) Application programs Grinding-wheel feed is at the top. This process can be repeated several times Grinding-wheel feed is at the top and at the bottom what results in 2, 4 or 6 feeds Grinding-wheel feed is at the top. At the bottom, the grinding-wheel is moved back. The grinding head goes quickly upwards and the feed is again activated. This process can be repeated several times.
