The tooth geometry is grinded in only one setting. Each saw blade is automatically positioned independently of the diameter when it moves into the grinding position. A measuring probe then measures the tooth geometries. High precision is a prerequisite for later exact grinding results.
Highlights

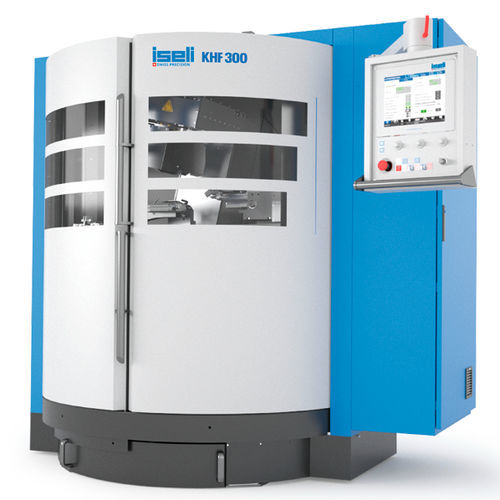

Conceived and designed for the fully automatic processing of carbide-tipped circular saws
Blade feed from right to left, including radius tracking
The space-saving machine design allows for high ergonomics and excellent usability
Easy access for maintenance work to the electrical cabinet, coolant pump, pneumatics and extinguishing systems
Unlimited storage for circular saw parameters
Optimal, fast and safe programming and setup of circular saw parameters
The positioned tooth can also be ground completely in several passes.
Manual or automatic (using a probe) repairment tooth recognition
Measurement protocol of the side clearance and centricity offset
Ready for the integration of a fully automatic loading system (robot)
Application programs
Modes
Symmetrical grinding starting from the center of the blade body Grinding based on automatic setting of tool zero points Grinding based on manual setting of tool zero points
