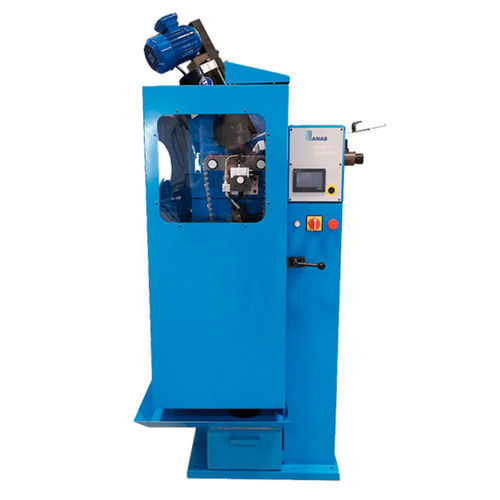

Automatic sharpening machine ANAB X3 PROFESSIONAL

PLC-controlledhigh-performancewith touch screen

The ANAB X3 Professional is a fully automatic sharpening machine. It is the right choice for high-performance sharpening services, forest workers or resellers of sharpening machines who want the highest level of sharpness. The machine includes an integrated water cooling system as well as LED lighting and provides the best wet sharpening results and longer chain life for chain saws and harvester chains. The water cooling system cools the chain effectively during the entire sharpening process. This means that the chain will keep its sharpness up to 50% longer. Even with extended working time in continuous operation, the water cooling system ensures a fast sharpening speed, which significantly increases productivity. The machine automatically senses whether teeth are positioned on the left or on the right, cutting teeth and depth gauge are sharpened at the same time. Another advantage: thanks to our patented, automatic tooth gap control system, the sharpening process is not interrupted even in the event of irregular teeth frequency. Technical data Drive - Electro-pneumatic Motor - 0.55 kW frequency-controlled grinding speed, adjustable on 3 levels Control - PLC-based with touch screen, fully automatic or step-by-step Chain pitch - 325“, 3/8“, 404“ Driving link strength - 1.1 – 2.0 mm, continuous Cutting angle - 32° Top plate angle - 28° Compressed air - 6 bar Accessories - CBN grinding-wheels (2.5 / 3 / 4 / 5 / 5.5 mm RMHS), stand
