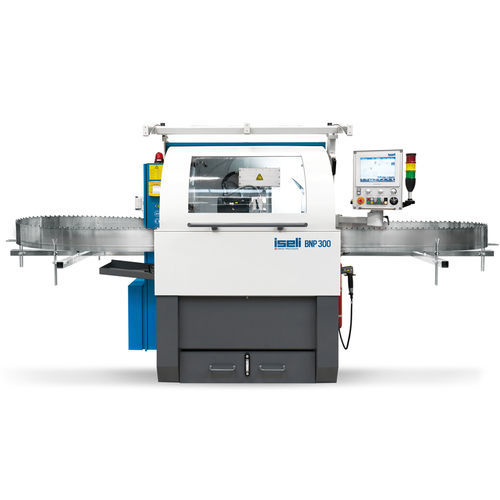

Automatic sharpening machine BNP 300

CNCband

The BNP 300 meets all requirements for machining stellite and carbide tipped band saws. In convincing quality, with a long service life. Triplechip with tooth height difference and 45° chamfering can be ground in one pass. Profile-grinding of standard and Stellite-tipped band saw blades by means of CNC axes "X" & "Y" (several complete cycles of the band saw blade) by means of CNC axes "W" & "Y" (grinding of the positioned and clamped saw tooth) Top/Face-grinding of Stellite- and Carbide-tipped band saw blades by means of CNC axes "W" & "Y" (grinding of the positioned and clamped saw tooth) Chamfering and bevel grinding of the tooth back by switching in the CNC axis "U" (for triplechip with tooth height difference and 45° chamfering) Automatic set up of the saw Positioning the saw to the workpiece grinding position (automatic) Positioning the saw to the workpiece change position (automatic) Automatic recognition of the tooth group and measurement of the tooth pitch Automatic probing of the grinding wheel on the saw tooth Automatic tooth form scanning "Tooth Tracing System - TTS
