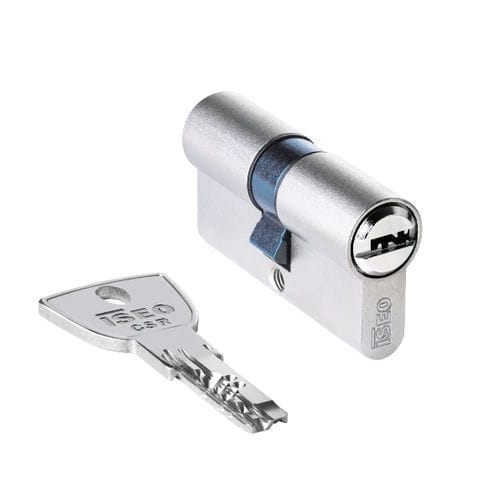

Cylinder lock R9

The CSR R9 cylinder is a reversible locking system which is part of the CSR product family. The R9 cylinder is available in different locking, keyed alike versions and masterkey systems. APPLICATION The R9 with a large number of different mechanical profiles available, combines excellent potential for the creation of master key systems according to the security standards. FEATURES R9 has 6 encryption pins in the inferior line and up to 4 pins in the lateral line from a length of 30-30 made of wear resistant special brass, per locking side. A drilling protection as well as anti-pick protection is integrated in the profile cylinder. The surface of the cylinder body is matt nickel-plated or brass as standard. The keys are made of nickel silver. Optionally selectable features: emergency and danger function free cam construction key Technical Features Cylinder body and plug made of brass in the standard version matt nickel-plated Suitable for installation in fire doors Encryption pins in stainless steel Counterpins in brass Springs in stainless steel Euro-profile cylinder (norm) Locking cam made of sintered steel Locking cam in min. 30° position (according to DIN) In each plug there are 2 picking-resistant counterpins The drilling protection consists of hardened steel pin in the cylinder body and plug Each plug contains 2 profile pins which interrogate the key lance The drilling protection consists of a hardened steel pin in the cylinder body Hardened steel strengthening bar for increased snap and cylinder extraction resistance
