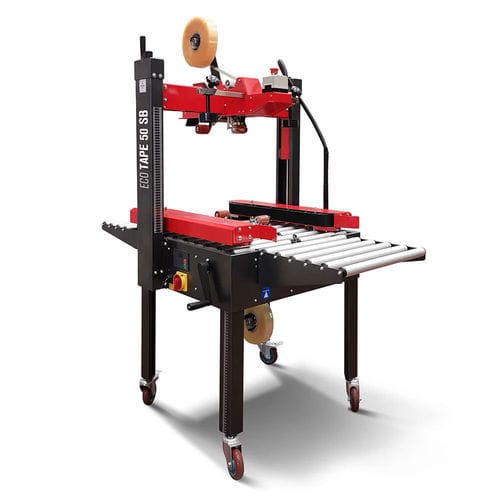

Adhesive tape taping machine Easy tape 50 TSB

manual settingwith volume detection

Semi-automatic manual dimensioning carton sealer with four feeding flat belts (two upper and two lower). The machine tapes the top and bottom of American-type fixed size boxes with adhesive tape. This carton sealer is particularly suited for tall and short or unstable boxes. The result is a perfect alignment of box flaps and optimum sealing, performed by the efficient taping head. Machine includes infeed and outfeed rollers and represents a practical and simple packaging station. Technical features Easy tape 50 TSB Weight: 250 kg Power supply: 220 Volts 50/60 Hz 1 Environmental humidity conditions ≤ 90\% Box transfer speed: 20 mt / min Maximum box weight: 40 kg Use temperature : + 0 °C to + 40 ° C Machine dimensions: L 1936 × W 1256 x H 1290 -1450 mm Maximum Noise: 75 db Electrical protection: IP 54 Adhesive tape: Kraft, polypropylene, PVC Standard taping head: 50 - 75 mm Working table height: 590 - 750 mm Installed power: 0,40 Kw
