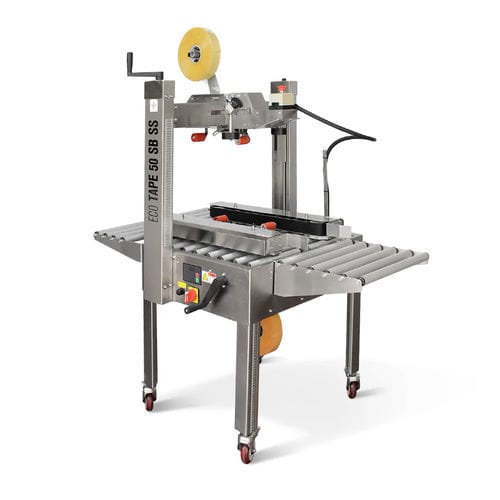

Multi-flap case sealer Eco Tape 50 SB SS

adhesive tapesemi-automatic

DESCRIPTION Stainless steel taping machine Eco tape 50 SB SS. The Eco Tape 50 SB SS is a semi-automatic “entry level” stainless steel carton sealer with manual sizing, which seals the bottom and top of fixed-size American-style boxes with self-adhesive tape. The machine can be used by non-specialized operators as it requires very simple adjustment operations. The advancement of the box occurs through two drive belts in the lower part (controlled by two motors), thus ensuring maximum uniformity of sliding. The result is a perfect alignment of the flaps and therefore an optimal sealing, which is performed by the performing taping heads. “Energy saving” system with timed stopping of the tap-wound drive completed. Fixed taping heads not removable from the machine. TECHNICAL FEATURES Machine dimensions: L 1430 x W 960 x H 1460 – 1580 mm Net weight: 120 Kg Power supply: 220 Volt Power supply frequency: 50/60 Hz Installed power: 0,24 kW Electrical protection: IP 54 Maximum noise: 75 dB Taping head: Standard 50 – 60 mm Closing system: Tape Adhesive tape: Kraft, polipropilene, pvc Sealing speed: Fino a 15 scatole min Transfer speed: 22 mt/min Working table height: H 690/750 mm Dimension Min. product: L 150 x W 120 x H 100 mm Max product size: L ∞ x W 500 x H 500 mm Type of boxes: American type
