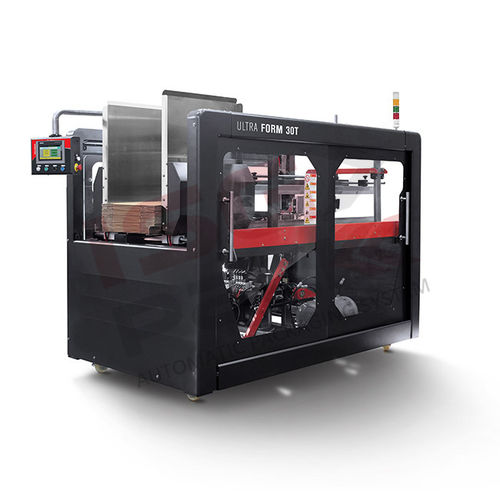

Automatic carton erector Ultra Former 40 T

adhesive tapehigh-speed

High speed carton erector, mod. Ultra Form 30 T, forms boxes suited for horizontal filling and automatic flap closure. Boxes are manually placed on a vertical motorized storage in order to have them in a correct position when picked up by a gripping head with suction cups applied on a mechanical arm. Forming speed from 30 to 40 boxes per minute. Electropneumatic devices allow a safe box forming and squared-folding. The box sizes can be regulated by SIEMENS plc with touch screen. The machine is equipped with safety guards controlled by microswitch. The box is closed with auto-adhesive tape or Nordson hot melt system mod.”Mesa”. Technical features Speed Former 30 T Power supply: 380 volts 3 ph - 50/60 Hz Environmental humidity conditions ≤ 90\% Use temperature range: + 0 ° C to + 40 ° C Maximum Noise: 75 db Air Supply: ≥6kgf / cm2 Electrical Protection: IP 54 AdhesiveTape: Kraft, polypropylene, pvc Standard Taping head: 50 - 75 mm Working table height: 1040+50 mm Installed power: from 1,6 to 3,4 Kw Production capacity: from 30 to 40 boxes/min Storage capacity: 800 mm (80-90 boxes according to box thickness)
