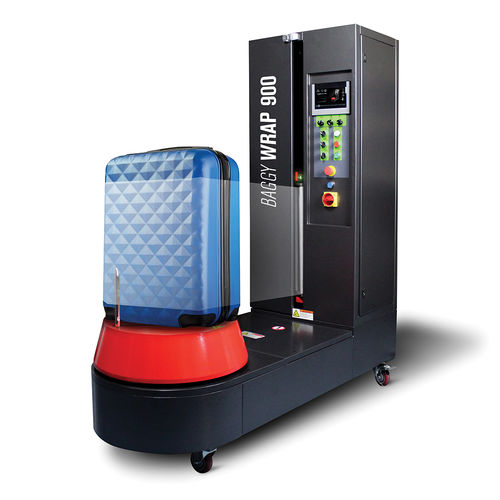

Turntable stretch wrapper Baggy Wrap 900B

semi-automaticcaseairport luggage

Semi-automatic luggage wrapper with stretch film. The model Baggy Wrap 900 B is a semi-automatic stretch wrapping machine for rectangular luggage. It is equipped with a digital lcd control panel that allows, in a very simple and functional way, to regulate the programs and the wrapping parameters easily. Machine controlled by PLC. Parameters adjustable by control panel: Luggage number of rounds in bottom Luggage number of rounds in top Adjustable turntable speed from 0 to 20 rpm Carriage ascending and descending speed Photoeye reading delay adjustable Function Man/Aut. Features Machine structure in painted steel sheet Film carriage by transmission chain Maximum wrapping height: 1200 mm Environmental humidity conditions: ≤ 90% Operating Temperature range: +0° C to + 40 ° C Machine controlled by PLC with digital text display Film carriage fall protection system Motorized pre-stretch set at 250% with possibility to interchange pre-stretch ratios (150, 200, 250%) Ermegency stop in compliance with CE regulations Lateral holes for forklifting of the machine Inverter for soft start and indexed stop of the turntable
