Semi-automatic packaging machine Ultra Vac 600 SAvacuumcompactbell type
Add to favorites
Compare this product
Characteristics
- Operational mode
- semi-automatic
- Type
- vacuum, compact, bell type
- Applications
- for powders, for the food industry
- Domain
- for the food industry, for the cosmetics industry, for the chemical industry
- Other characteristics
- high-speed, with sealing bar, multipack
- Throughput
200 p/h
Description

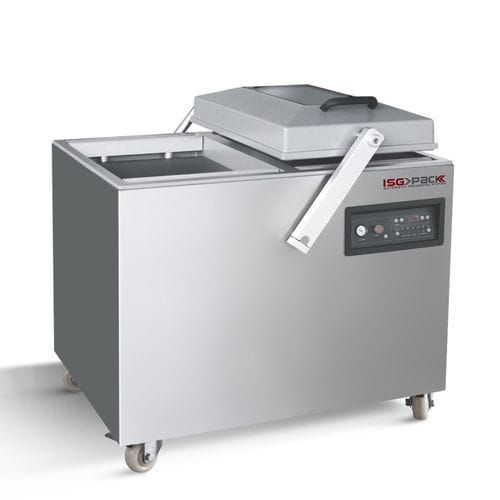

The Ultra Vac 600 SA is a trolley-mounted industrial vacuum packaging machine ideal for large spaces. Equipped with 4 sealing bars and a moving bell. It is equipped with a 63 m³/h vacuum pump to ensure, in addition to a fast vacuum, also a greater packaging speed.
OPTIONAL ACCESSORIES
- Aluminum tank and cover with tempered glass
- Gas injection kit
FEATURES OF THE PACKAGING MACHINE
- Power supply: 380 Volts 3 ph
- Power frequency: 50/60 Hz
- Installed power: 2.2 kW
- Machine size: L 1310 x W 800 x H 1127 mm
- Net weight: 200 Kg
- Sealing bar size: L 600 x W 10 mm
- Number of sealing bars: 4 Lateral
- Vacuum pump: 63 m³/h
ADJUSTMENTS FROM THE CONTROL PANEL
- 10 programmable memories for different work cycles
- Vacuum time adjustment
- Technical GAS injection time adjustment
- Sealing time adjustment
- Sealing cooling time adjustment
- Work cycle count management
