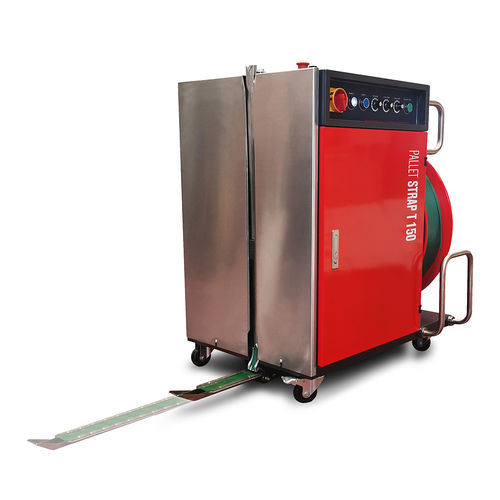

Semi-automatic strapping machine Pallet Strap T150

for packagingfor logisticsfor pallet

The Pallet Strap T150 is a new generation semi-automatic strapping machine designed to meet the needs of strapping pallets. It works with DC motors arranged for each function of the machine and it differs from other semi-automatic strapping machines for its strapping head designed to have a high tensioning force up to 150 Kg. It includes a retractable motorized spear to facilitate insertion of the strap under the pallet. This new model has an electronically adjustable strap tensioning system though a potentiometer on the control panel. TECHNICAL FEATURE: Stainless steel working table Strong strapping head Electronical control of strap tensioning force Strapping spear length 1000mm Minimum pallet height 650 mm Motorised retractable spear Working motors only during strapping cycle Strapping group with dc motors Automatic loading of the strap Automatic insertion of the strap button Ejection loop in case of accidentally start of the cycle Analog control panel Maximum tensioning of 150 kg Four pivoting wheels, two of which with brake Easyfast strap disassembly system (without any tools) Automatic ejection of the strap at the end of the coil Welding cooling time adjustment Strapping tensioning adjustment through potentiometer Welding blade temperature adjustment Adjustment of the length of the strap to be dispensed
