AC motor AR series
synchronous48 Vvariable reluctance

AC motor - AR series - ISGEV - synchronous / 48 V / variable reluctance
AC motor - AR series - ISGEV - synchronous / 48 V / variable reluctance
AC motor - AR series - ISGEV - synchronous / 48 V / variable reluctance - image - 2
AC motor - AR series - ISGEV - synchronous / 48 V / variable reluctance - image - 3
AC motor - AR series - ISGEV - synchronous / 48 V / variable reluctance - image - 4
AC motor - AR series - ISGEV - synchronous / 48 V / variable reluctance - image - 5
AC motor - AR series - ISGEV - synchronous / 48 V / variable reluctance - image - 6
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
synchronous
Voltage
48 V
Configuration
variable reluctance
Power

Max.: 11 kW
(14.956 hp)

Min.: 0.075 kW
(0.102 hp)

Description

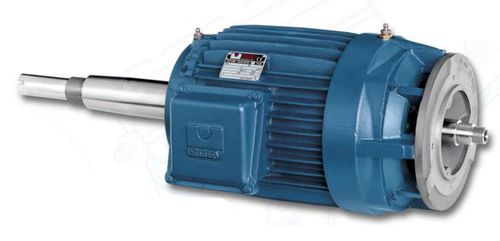

The AR series sealed, external ventilation motors are built with IEC unified dimensions and construction configurations. The stator is built with a three-phase winding while the anisotropic rotor is designed to generate the synchronisation torque. Motors in this series are available with 4 and 6 poles. This series is completely maintenance-free and this feature, together with the control through inverter, makes these machines suitable for a large number of applications. Reluctance synchronous motors are mainly used in the textile and glass industry, in the sector of plastic materials and for the applications requiring speed adjustment independently of load values.
