Hydraulic adapter 148
for pipefemalebrass

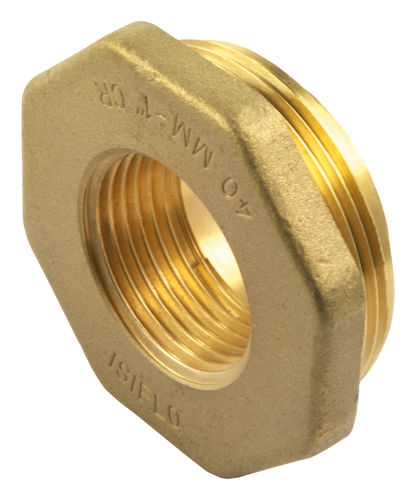

Hydraulic adapter - 148 - Isiflo AS - for pipe / female / brass
Hydraulic adapter - 148 - Isiflo AS - for pipe / female / brass
Hydraulic adapter - 148 - Isiflo AS - for pipe / female / brass - image - 2
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Applications
for pipe
Connector type
female
Material
brass
Diameter

Max.: 63 mm
(2.48 in)

Min.: 20 mm
(0.787 in)

Description

Isiflo building block system - With adapters Isiflo couplings can be rebuild from 16 mm to 63 mm. It is also possible to reduct or rebuild to female and male threads. Our brass products are made in RA455 (CW625N) which is a special dezincification resistant brass (DZR). Our brass alloy undergoes a hot forging where the brass becomes a mixture of alpha and beta grains. Beta grains contain a slightly higher concentration of zinc which makes the alloy easy to forge. To achieve the right quality, the forging temperature must be controlled and repeatable in line with the cooling process. This process secures a corrosion free material with long lifetime
