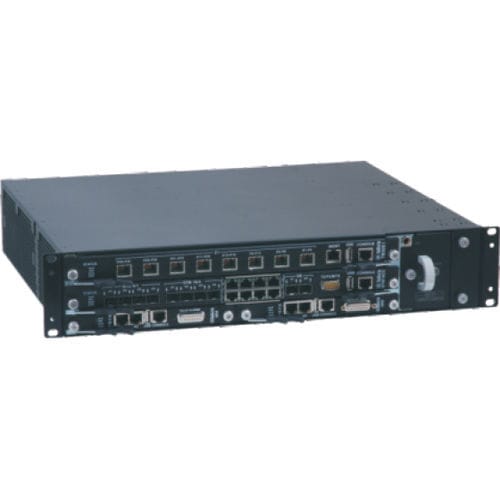

Module multiplexer ADM 16

opticalpowerhigh-density

SparkLight ADM-16 is a compact, high-density STM-16/4 next-generation access multiplexer, that helps to support high-speed communications services. Benefits Provides revenue-generating next generation Ethernet services while preserving investments in legacy SDH networks Optimized bandwidth utilization for Ethernet services using GFP, VCAT, LCAS functionality Effective management integration using Java Web Start GUI and SNMP protocol transported by an embedded IP/OSPF telemanagement network Compact solutions improve place and energy efficiency that can help lower operating expenses asy migration from TDM to IP Low OPEX/CAPEX Features 2 and 5 slot »high Availability« shelf with power supply redundancy Non blocking 17.5G@VC-4 and 3.7G@VC-12 cross-connect SDH Line Features: Up to 4 STM16/4 SFP based optical interfaces Up to 4 STM4/1 SFP based optical (in case of STM1 also electrical) interfaces WDM ready Supports many different SDH protection mechanisms Packet Features: Up to 8 10/100 Eth interfaces Up to 2 Gbit Eth interfaces GFP-F Mapping (optional GFP-T for Gbit Ethernet) VCAT and LCAS protocol support Enhanced L2 aggregation support Up to 252 E1 interfaces in 5 slot chassis (max 63 E1 interfaces on special multiport E1 blade) Java Web Start and SNMP based integrated management
