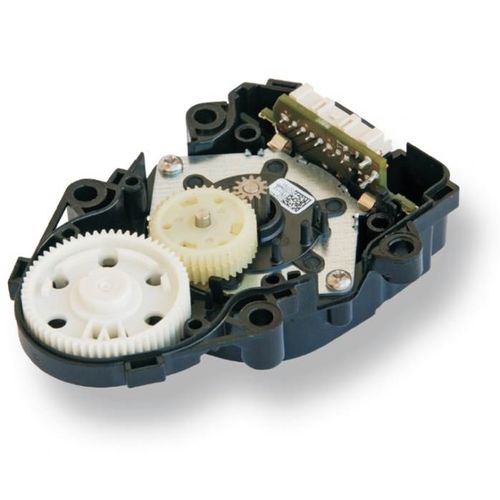

DC electric micro gearmotor

spurparallel-shaft0 - 0.1 Nm

Enables automatic street illumination adjustment, depending on traffic and environment circumstances. AFS actuator is a part of a high-end AFS headlamp. Its advantages are high torque, high speed, high mechanical stress resistance, wide temperature range conditions, EMC - ESD resistance and long lifetime. Actuator is open to different driving protocols (LIN, direct drive). Based on a stepper motor, plastic gearbox and transmission gears designed and manufactured in Iskra Mehanizmi. Driving electronics was also designed and tested in house Product Spec: Motor: • Type: stepper motor • Step angle: 7,50 • Dimensions: 42 x 16 mm • Nominal torque at 1000 pps: 40 mNm Actuator: • Dimensions: 94 x 46 x 32 mm • Nominal torque at 1000 pps: 200 mNm • Temperature range: -40 to +1300 C • Accuracy of actuator: ± 20 • Voltage range: 9 – 18 V • Driving principles: direct drive or LIN bus drive • Lifetime: >15 years
