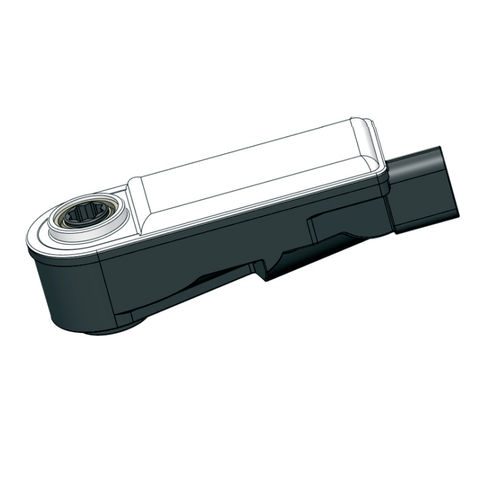

Small actuator

rotaryelectric12-volt

Slim Rotary Actuator Highlights: ■ Compact Design ■ High Torque Slim Rotary Actuator Product Highlights Typical Applications Automotive, Industrial, Automation Small Small Size: 104 x 37 x 34 mm Low Weight: 113.5 g Strong Torque: 1.5 Nm Robust IP protection: IP69K Benefit Compact Design, High Torque Technical Data Motor Type: Brushed DC Weight: 113.5 g Voltage Range: 9 ~ 16 V Max. Current: 2 A Température Range: -40° - +85°C Load Torque (at 20°C and 12 V): 1.5 Nm Rot. Speed (at 20°C, 12 V and 1.5 Nm): 8 RPM Hall sensor for closed loop operation
