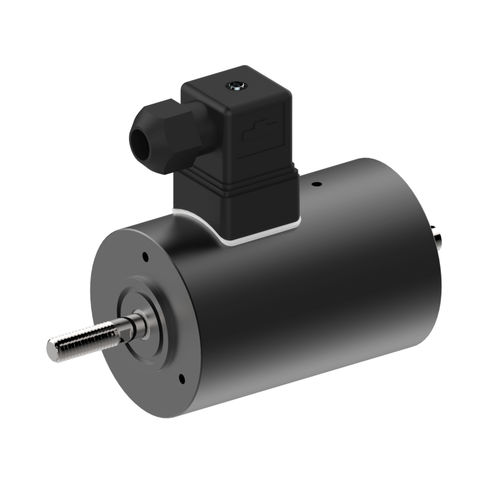

Linear solenoid UG series

customfor heavy loadsindustrial

Industrial solenoid Linear industrial solenoid for heavy work and long life. Available in either push or pull stroke versions. Custom made solenoids are available on request. Industrial Solenoids pull or push, double or return operation DC Solenoids General Force of the solenoid The forces indicated in the performance data are measured at an ambient temperature of 20°C with the solenoid functioning at its normal operating temperature, with 90% of its rated voltage. They apply to the preferred rated voltage of 24 VDC. The values shown in the diagrams can differ ±10% as a result of natural dispertion. Operate and release times Operate and release times are standard time data, apply to the preferred rated voltage, are measured with a load equal to 70% of the values shown in the diagrams and have been switched on d.c. side with a wet reed relay. Preferred rated voltage ISLIKER-solenoids have a preferred rated voltage of 24 VDC. Other rated voltages up to 230 VAC can be delivered. At applications of security class I the earth connection must be profided by the user and in accordance with the statuory regulations VDE 0580 §6. Duty cycle The max. cycle time to determine the duty cycle is 300 sec. Electrical terminations a) with stranded leads (300 mm) UL-1569 b) with plug and socket connection DIN 43 650 c) with a terminal box For alternative-current applications The solenoids with terminal box or plug and socket connection can be equipped with a full-wave recifier making tehm suitable for alternative-current mains connection. The max. rating of the recifier is approx. 100 W at 230 VAC. The magnetic plunger bush bearing The plunger is supported in place by PTFE bushings.
