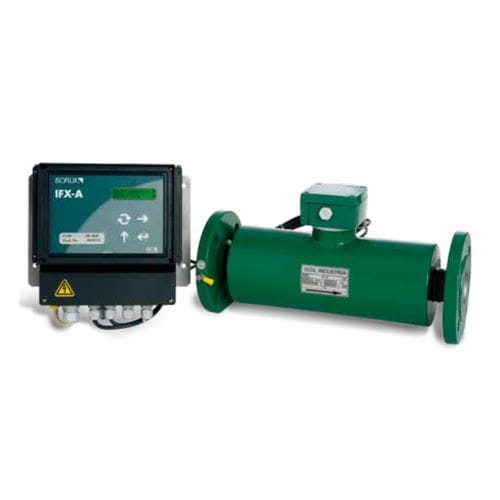

Ultrasonic flow meter IFX-A series

volumefor liquidsDN50 - 2"

The ISOFLUX IFX-A ultrasonic flow meter is suitable for applications on clean water and low conductivity liquids. It belongs to a complete range of flow meters ISOFLUX, intended for flow measurements of conductive, non-conductive liquids, the range includes the following versions: IFX-A – AC mains powered meters (in this product sheet) IFX-B – Battery powered meters IFX-R – MID certified battery water meters Ultrasonic flow meters operate on transit time principle by measuring the time difference of ultrasonic waves traveling in and against the direction of the fluid flow. Description The ultrasonic flow meter IFX-A, flow meters, energy meters, ultrasonic flowmeters, and industrial automation systems have been ISOIL Industria‘s passion and continuous research since 1958, and for any information or advice please do not hesitate to contact our specialists. Technical Specifications For applications on clean water and low conductivity liquids. Operating principle based on the measurement of transit time. Available with single or double beam. Flanged connections according to DIN or ANSI standards. Measuring tube in stainless steel. Carbon steel flanges and outer tube. IP 68 waterproof sensor Converter with display in separate version with cable (5m standard). Mains power supply 90-230 V AC Pulse or 4-20 mA output. High precision and reliability thanks to the absence of moving parts.
