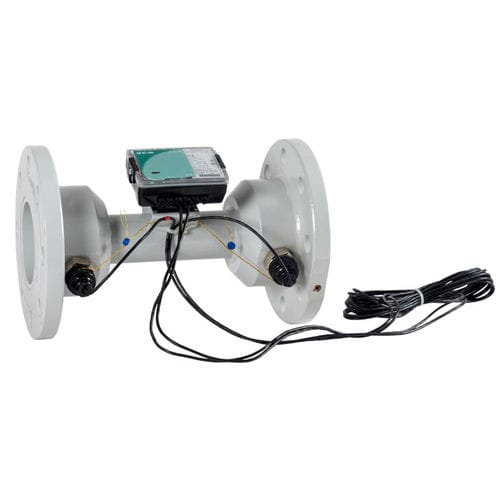

Ultrasonic flow meter IFX-M4-01
volumefor liquidsDN25 - 1"

Ultrasonic flow meter - IFX-M4-01 - ISOIL Industria Spa - volume / for liquids / DN25 - 1"
Ultrasonic flow meter - IFX-M4-01 - ISOIL Industria Spa - volume / for liquids / DN25 - 1"
Add to favorites
Compare this product

Go to the ISOIL Industria Spa website for more information

Characteristics

Technology
ultrasonic
Type
volume
Fluid
for liquids
Pipe diameter
DN25 - 1", DN50 - 2", DN100 - 4", DN80 - 3", DN40 - 1"1/2, DN20 - 3/4", DN32 - 1"1/4, DN65 - 2"1/2, DN200 - 8"
Installation
clamp-on
Protection level
IP65, IP67
Applications
industrial
Other characteristics
compact
Volumetric flow rate

Min.: 0 m³/h
(0 ft³/h)

Max.: 60 m³/h
(2,118.88 ft³/h)

Process temperature

Min.: -30 °C
(-22 °F)

Max.: 130 °C
(266 °F)

Process pressure

Min.: 0 bar
(0 psi)

Max.: 16 bar
(232.06 psi)

Description

The ultrasonic range sensor IFX-M4-01 ISOFLUX is especially suitable for measuring energy consumption for fluids, even other than water, in closed or open indoor energy systems and also for water consumption. The advantages of the IFX-M4-01 model are that all flow sensors are MI004 certified under European en1434, IFX-M4-01 can be used as sensors for calculating thermal or cooling energy and for measuring flow. The range starts from DN25 to DN200. It can be connected to any type of accountant such as our ISONRG MV311, or it provides pulses directly, in a compact version and its power can be integrated battery or powered externally Description The ultrasonic range sensor IFX-M4-01 ISOFLUX, flow meters, energy meters, ultrasonic flowmeters, and industrial automation systems have been ISOIL Industria‘s passion and continuous research since 1958, and for any information or advice please do not hesitate to contact our specialists.
