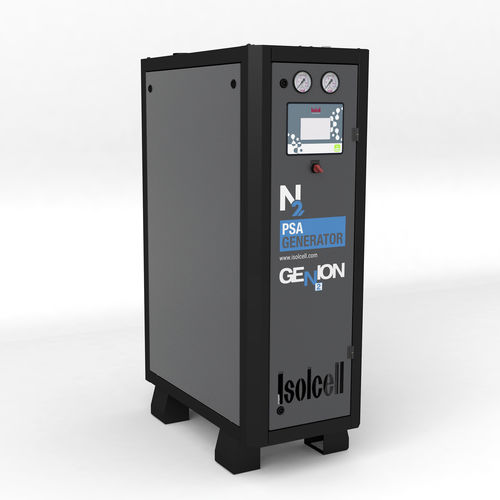

PSA nitrogen generator NM4
ultra high-purityprocessindustrial

PSA nitrogen generator
PSA nitrogen generator
Add to favorites
Compare this product


Characteristics

Gas characteristics
ultra high-purity
Domain
process, industrial, for the food industry
Applications
for laser cutting, for liquids
Technology
PSA
Configuration
compact
Other characteristics
low flow rate
Flow rate

Max.: 35.7 m³/h
(1,260.734 ft³/h)

Min.: 3.7 m³/h
(130.664 ft³/h)

Output pressure

Max.: 9 bar
(130.53 psi)

Min.: 0 bar
(0 psi)

Gas purity

Max.: 99.999 %

Min.: 95 %

Rated capacity

0.5 kW
(0.7 hp)

Description

For low flow-rates Nitrogen generators for industrial applications, purity from 95% to 99,999%. Perfect for small quantities of nitrogen, from 500 liters/hour up to 35 Nm3/h. PSA technology Easy set up, only dry and filtered compressed air is needed Integrated oxygen analyzer, standard for every model Easy maintenance, low service costs Quality: Class 1-4-1 ISO 8573.1 Solid < 0,1 µm Dew point < +3°C Oil < 0,01 mg/m³ Pressure: 6 - 10 bar (g) Temperature: 0….. +45°C Dew point:(2) < 40°C Nitrogen process tank: (3)25 lt Power Supply: 230 V / 50 - 60 Hz Power Consumption: max. 0,5 kW 4 line display O2 Electrochemical Sensor 0-25 % O2 Zirconium Sensor 0-25 % O2 Zirconium Sensor 10-1000 ppm Dew point sensor with indication on display Flow meter with indication on display Back pressure control valve kit Compressed air pressure sensor Nitrogen buffer pressure sensor Process tank pressure sensor Exhaust silencer Super exhaust silencer extern mounted Analog output 4-20mA (O2 level) Modbus RTU Modbus RS485/USB serial converter Profibus connection convert Canbus connection convert Webserver Digital remote control Extern alarm digital input Process tank (Integrated) 

Catalogs

NIMOS NM4
NIMOS NM4
2 Pages
