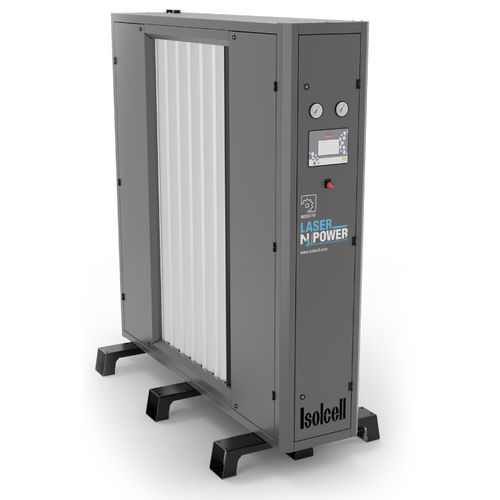

Ultra high-purity nitrogen generator S4

processindustrialfor the food industry

Modularity at your service Nitrogen generators for industrial applications, purity from 95% to 99,999%. The design of the new Isolcell PSA NL S minimizes obstructions and allows nitrogen flows from 15 Nm3/h to approximately 180 Nm3/h. Their modular structure allows the expansion of the production capacity of the system even after the start of the operations, simply by inserting other filtering columns into the single machine, or by adding additional external modules. PSA technology Easy set up, only dry and filtered compressed air is needed Integrated oxygen analyzer, standard for every model Modular system Easy maintenance, low service costs Quality: Class 1-4-1 ISO 8573.1 Solid < 0,1 µm Dew point < +3°C Oil < 0,01 mg/m³ Pressure: 6 - 10 bar (g) Temperature +5….. +45°C Dew point: (2) < 40°C Nitrogen process tank: (3) 270 lt Power Supply: 230 V / 50 - 60 Hz Power Supply: 230 V / 50 - 60 Hz 4 line display O2 Electrochemical Sensor 0-25 % O2 Zirconium Sensor 0-25 % O2 Zirconium Sensor 10-1000 ppm Dew point sensor with indication on display Flow meter with indication on display Back pressure control valve kit Compressed air pressure sensor Nitrogen buffer pressure sensor Process tank pressure sensor Exhaust silencer Super exhaust silencer extern mounted Analog output 4-20mA (O2 level) Modbus RTU Modbus RS485/USB serial converter Profibus connection convert Canbus connection convert Ewon (webserver + sms alarm + data logging) Digital remote control Extern alarm digital input
