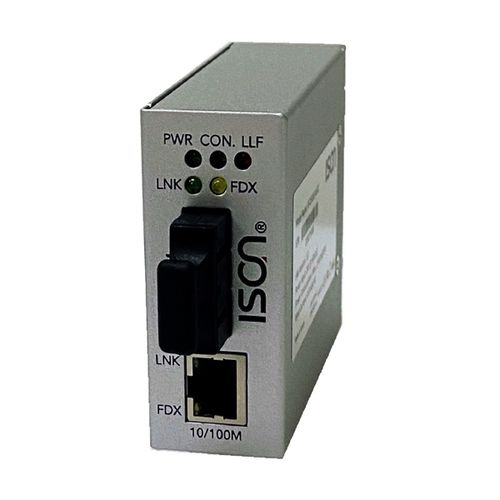

Media converter IS-DF102 series

Ethernetoptical fiberDIN rail

The IS-DF102 Series industrial media converter provides industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The ruggedized IP41 design keeps automation applications running continuously even under extreme temperatures from -40 to 75°C. All converters are fully tested and burn-in before delivery to ensure your successful installation. Product Features Ethernet Media Converter Converts Optical Signal and Ethernet Electrical Signal Supports IEEE100Base-FX, 100Mbps Fast EthernetOptical Fiber Supports IEEE 10/100Base-TX ,10/100Mbps FastEthernet Link Loss Forwarding Bi-Directional Link Loss Forwarding for Real Time Far-End Link Fault Alert Bi-Directional Auto Recovery for Ethernet Optical Fiber and Ethernet RJ-45 Communication Dual Forwarding Modes Pure Converter Mode: Low Packet Forwarding Latency – 1.6x10-6 Sec Switch-Store and Forward Mode: TX 10/100Mbps Auto-Negotiation Auto MDI/MDI- X IEEE 802.3x Flow-Control & Back-Pressure Error Packet Filtering Standard Compliance IEC 61000-6-2/ IEC 61000-6-4 Heavy Industrial EMC EN50121-4 Railway Track Side EMC High Level Electro Magnetic Susceptibility – Level 3 Easy System Configuration DIP-Switch Configuration: Forwarding Mode / TX Speed / Link Loss Forwarding TX Forced 100Mbps Half-Duplex for Legacy Ethernet Device Switch Store and Forwarding Mode support TX Speed Auto Negotiation and Auto MDI-X Hardened System Design Survive Under -40 ~75°C Environment Wide Range Redundant Power Input Ingress Protection – IP41 Suitable for Telecom Negative Power System
