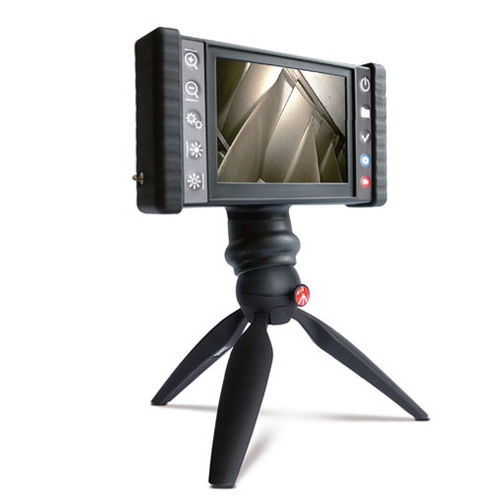

Flexible videoscope iLED System

for remote visual inspectionportable

Display size: 5.0“ (12.7cm) TFT colour/nonreflecting Display resolution: VGA (640 x 480 Pixel Operating system: Real-time operating system, with on-screen menu User interface: Direct action keys / function keys /arrow key Video interface: Composite video-out (BNC) Languages: English, German, Polish, French, Spanish, Italian, Turkish Power supply, primary: Rechargeable Li-ion battery Operating time more than 2 h Power supply, secondary: 12V adapter (optional accessories) Saving / recording: Video recording Direct image capturing / Freeze modus Video format: MPEG4 (.avi) (with time and date stamp) Image format: BMP (.bmp) (with time and date stamp) Could be converted to JPG at PC Storage: SDHC memory card up to 32GB (FAT32) 8GB / SDHC in device when delivered The iLED System is a complete Video Inspection System for all kind of infield inspections. With the integral High Power LED Light Source you get perfect illumination of the inspected object and connect to the iCapture Monitor or any other composite Monitor establishes a complete and easy to handle Video Inspection System. With diameters of 4.0 mm, 6.0 mm or 8.0 mm and lengths from 1.5 m to 7.5 m the iLED System leaves nothing to be desired. The iLED Inspection System is a Video Kit which includes the iLED PRO specified by articulation, diameter and working length of the following list and all necessary basic accessories, as one battery and one Objective (except for 4 mm), Charger and Neck-Holder. It comes in Video Pro System Case (up to 4 m length, IATA standard) or iRis Caseplus (from 5 m length, non IATA).
