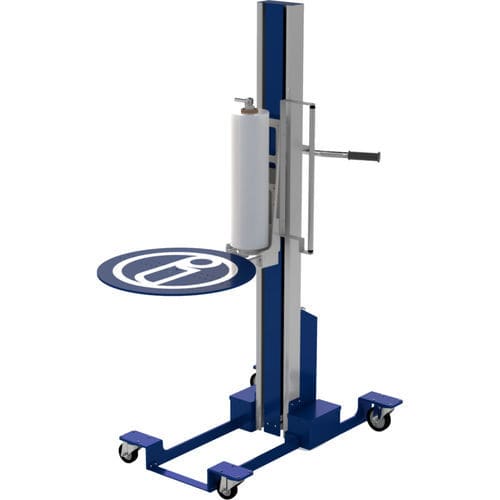

Lifting and wrapping device HERCULES

Jolly Work, wrapper and lifter, the 3 in 1 system that solves every packaging need and protects the health of operators. It starts as a simple pallet wrapper with stretch and pre-stretched film (Jolly Wrap), but the addition of the second roll accessory allows the composition of the pallet in half the time (Jolly Twin), while with the addition of the accessory plate (Magic Plate), it also becomes a box lifter and wrapper (Jolly Work), incredibly helpful for the preparation of the load. The device, equipped with various options, can be transformed, without any assembly and disassembly operation, into a pallet wrapper or box wrapper and lifter. JOLLY WORK TO SAVE TIME, MONEY, EFFORTS AND SAFEGUARD THE HEALTH! It saves operator effort, preventing back damage, commonly spread among logistics operators, increases productivity and profitability of the work, improves the result, facilitates and allows to wrap higher loads. TECHNICAL CHARACTERISTICS IN LIFTING MODE • Dimension of the lifting plate: 500 x 450 mm • Maximum lifting weight: up to 50 kg • Maximum lifting height: 1500 mm / 50 kg • Lifting plate in alluminium / wood TECHNICAL CHARACTERISTICS IN STRETCH-WRAPPER MODE • Standard 23 micron and/or pre-stretched film with 9-10-12-15 µm thickness • External film roll diameter: 105 mm • Stretch-film roll height: 440-450 mm / 500 mm (on request) • Max core-holder height: 460 mm / 520 mm (500 mm film) • Internal core Ø: 50 mm • Maximum pallet height: 2000 mm / 2500 mm on request • Adjustable film carriage speed • Regulation of the stretch-film tension through mechanic brake • Quick release system with the set brake level
