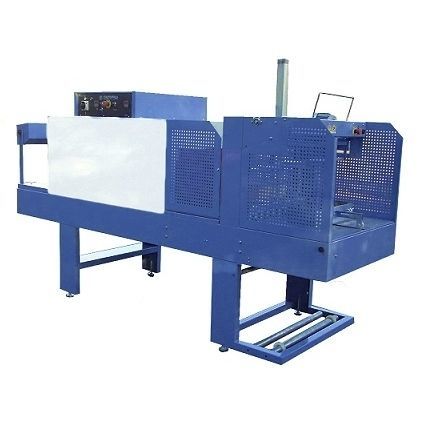

Automatic shrink wrapping machine ECOFARD 500 SA MB

for bottlesfor canssleeve

The most versatile and practical sleeve-wrapper line with semiautomatic and automatic feeding to make multipacks of different size of various products (bottles, vases, jars, pots, cans, phials, cases etc) and to protect boxes integrating or replacing the use of carton boxes at end-of-line with great management advantages. The machine works in a very simple way: the loaded products is moved forward by a pusher (on SA models) or by a motorized conveyor belt for an automatic feeding (on AA models). Then a transversal sealing-bar (that has a pneumatic movement and the temperature is electronically controlled) cuts and seals the film, before entering in the shrinking tunnel. ECOFARD line is composed by four models according the sizes: ECOFARD 500, 700, 900, 1250. ECOFARD 700, 900, 1250 are available in two different models: compact (MB) where the tunnel is connected with the sealing area, and sealer-plus-tunnel (BB) where the sealing area is independent from the tunnel. Ideal for medium-high output. MAIN CHARACTERISTICS COMMON TO ALL MODELS OF THE ECOFARD LINE • Sealing time electronically adjustable • In MB (monoblock) models the movement of the tunnel conveyor belt is synchronized with the sealing bar to drive easily also unstable products with no trays • In BB (biblock) models the products remains in the sealing area until the next bundle moves forward and pushes it onto the conveyor belt of the tunnel which is in continuous motion
