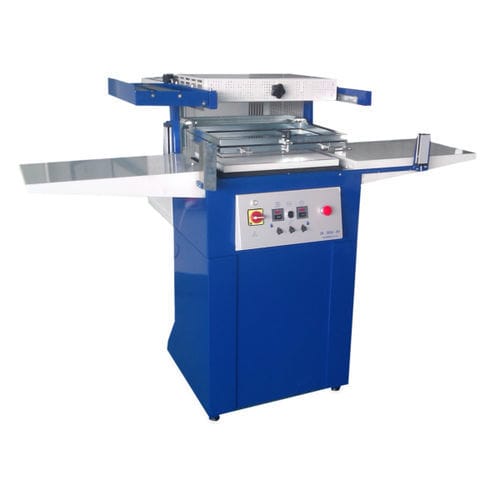

Semi skin-pack machine SKIN 5035-EV

Skin-wrapping means to join an object strongly to a cardboard through a plastic film. This one, heated and “softened“ by a radiating panel, will stick to the cardboard by means of a vacuum process and perfectly outline the shapes of the objects. The Magic-skin 5035 wrapper is a semiautomatic system (with automatic frame descent + vacuum connection/disconnection) and need only an operator to work. • Easy and robust • Low maintenance (periodical oil-change in the vacuum pump) • Suitable for thermoforming • Available Stand with wheels on request • The machine works with MOULDING PVC,POLYETHYLENE for SKIN, SURLYN, CARDBOARD SUITABLE FOR USED FILM • Machine made according to CE rules. SPECIFICATIONS – SKIN 5035-EV • Power supply: 240 V – 1 Ph • Power required: 3,5 KW • Overall machine dimensions L x W x H: 1860 x 1000 x 1350 mm • Working plate height: 1020 mm • Weight: 150 Kg • Max cardboard size: 495 x 345 mm • Max product height: 100 mm • Air consumption: – • Output: Two cycles/min • Notes: Technical data subject to variations without prior notice • Output depends on the operator and the type of the package
