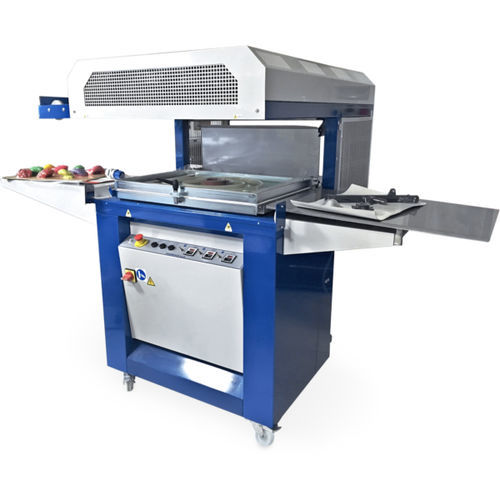

Automatic skin-pack machine SKIN 5070-EV

semi

Print Email MAGIC-SKIN 5070 THE BEST WAY TO PROMOTE YOUR PRODUCTS Skin-wrapping means to join an object strongly to a cardboard through a plastic film. This one, heated and “softened“ by a radiating panel, will stick to the cardboard by means of a vacuum process and perfectly outline the shapes of the objects. The Magic-skin 5070 wrapper is a semiautomatic system (with automatic frame descent + vacuum connection/disconnection) and need only an operator to work. • Easy and robust • Low maintenance (periodical oil-change in the vacuum pump) • Suitable for thermoforming • Available Stand with wheels on request • The machine works with MOULDING PVC,POLYETHYLENE for SKIN, SURLYN, CARDBOARD SUITABLE FOR USED FILM Machine made according to CE rules. • Power supply: 400 V – 3 Ph + G • Power required: 7,8 KW • Overall machine dimensions L x W x H: 2400 x 1300 x 1570 mm • Working plate height: 1020 mm • Weight: 305 Kg • Max cardboard size: 495 x 695 mm • Max product height: 150 mm • Air consumption: 24 NI / cycle @ 6 bar • Output: Two cycles/min
