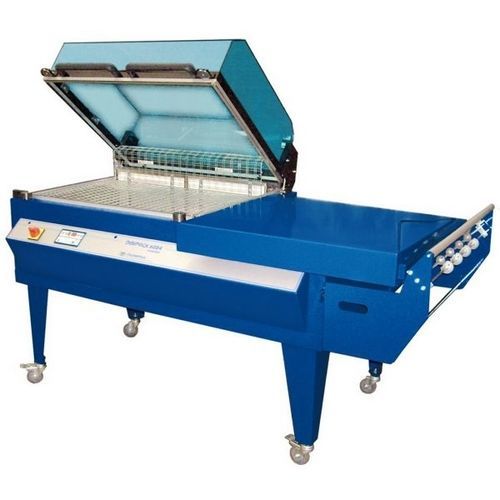

Manual packing machine 6084 EVX

bell typeheat-shrink filmlarge-format

In addition to small-size wrapping machines to pack small and medium products, Italdibipack offers also EXTRA-LARGE “one-step®” systems, the Dibipack BIG, the largest models of the Dibipack Evolution line, conceived and designed in order to be the winning answer to the increasing demand of a large-size machine with great capacity and high performances. Ideal to wrap products of large dimensions, with wide surface, such as frames, pictures, panels a.s.o. MORE INFORMATION These “giants” have the same specifications as the shrink-wrapping machines of the Dibipack Evolution line but with some peculiarities: such as two hold-down solenoids that keep the hood closed during the working cycle, two fans that grant a better circulation of warm air during shrinking. The machine works with thermo-sealing and shrinkable films such as PVC (BLUE FILM) or polyolefine films (GREEN FILM – GOLDEN FILM). Machine made according to CE rules. SPECIFICATIONS DIBIPACK 6084 EVX • Power supply: 400 V – 3 Ph + N • Maximum power required: 7 KW • Working plate height (on stand): 920 mm • Machine weight: 190 kg • Sealing area W x L: 580 x 840 mm • Maximum product height: 250 mm by request • Impulse sealing system: Bottom blade • Maximum roll dimensions DIA x W: 250 x 800 mm • notes: Technical data subject to variations without prior notice • Output depends on the operator and the type of the package
