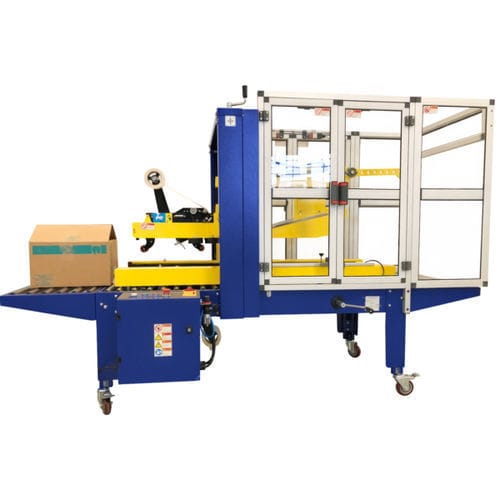

Double-flap case sealer NASTROPACK NP 05 EV

adhesive tapeautomatic

A machine for the automatic sealing of standard-size carton boxes (units with fixed height and width) with simultaneously sealing of bottom and top flaps of the carton box. An adjustable pneumatic working device assuring the automatic closing of the top flaps gives the possibility to position this machine, not requiring the constant presence of an operator, inside fully automatic packing lines. Two simple and fast manual hand-wheel adjustments allow the setting of the machine to the required box size. The ideal solution for carton boxes with a maximum 50 cm. width and height. • Power supply: 230 V – 1 Ph – 50 Hz • Power required: 0,6 kW • ?Machine dimensions (LxWxH): 1500x900x1600 mm • ?Machine weight: 280 kg • Compressed air consumption: 4 Nl / 6 bar • notes: Technical data subject to variations without prior notice • The output depends on the operator and the type of the package
