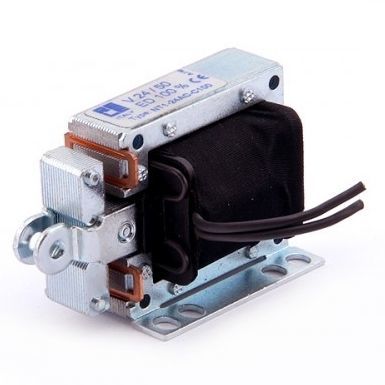

Linear solenoid NT series

powerACvoltage

This Solenoid Series has been specifically designed for maximum AC performance, with both the frame and plunger of laminated steel construction, made of special magnetic steel featuring high magnetic permeability and low magnetic losses. Designed to be used in any position, they are able to transform an electric power into an axial pull action. Coils have Class F insulation. Performance, as shown in the force diagrams, is normally referred to a temperature rise of 80°C in open air, with 35°C ambient temperature and coils fed at 105% of rated supply voltage (as per VDE 0580).
