Digital pressure gauge LEO 1G 1/4IP65ATEX
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Process connection
- G 1/4
- Protection level
- ATEX, IP65
- Pressure
Max.: 1,000 bar
(14,503.77 psi)Min.: -1 bar
(-14.5 psi)- Process temperature
Max.: 50 °C
(122 °F)Min.: -20 °C
(-4 °F)
Description
With peak recording measuring frequency of peak: 5 Khz

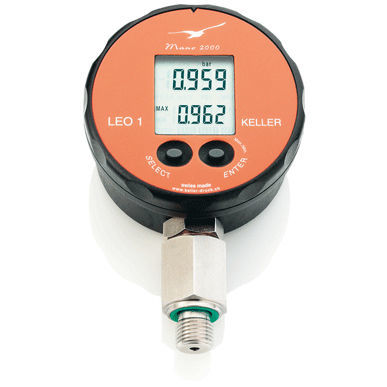

LEO 1 is a micro-processor controlled, accurate and versatile digital pressure measuring instrument with integrated fast peak-, max.- and min.-function.
The instrument is used in two modes:
Mano-Mode: The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the MAX.- or MIN- pressure since the last RESET.
Peak-Mode: The pressure is measured 5’000 times per second and is brought to the display twice per second. The top display shows the actual pressure, the bottom display the peak- (MAX.) or trough-pressure (MIN.).
Catalogs
Digital ManoMeter
1 Pages
