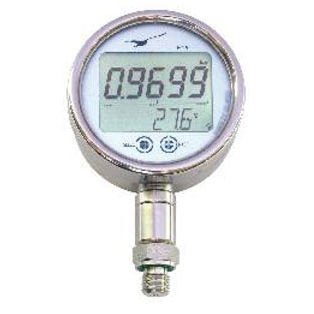

Absolute pressure gauge LEO 5

with LCD displayglassstainless steel

The LEO 5 combines the notable features of Keller’s successful LEO-Record and LEX 1 digital pressure gauges, featuring an IP66- rated stainless steel enclosure. This robust housing combines contemporary microcontroller-based electronics and capacitivetouch controls, operated through the environmentally-sealed safety glass front panel. The large backlit LCD display ensures readability in any lighting conditions. Two selectable measurement modes, standard and peak, are included to ensure maximum versatility. In standard mode, highresolution pressure measurements are taken twice per second. When operating in peak mode, sampling frequency increases to 5 kHz with 16 bit resolution. The LEO 5 interfaces with a PC via USB connectivity, allowing access to active measurements and recorded data including pressure, peak pressure, temperature, and measurement interval. PC connection also allows device configuration,firmwareupdates, and recharging of the integral accumulator power supply. The unique modular design of the LEO 5 makes possible adaptation to customer-specificmeasuring requirements.
