Digital pressure gauge ECO 2brassIP65ATEX
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Material
- brass
- Protection level
- ATEX, IP65
- Other characteristics
- compact, economical
- Pressure
Min.: -1 bar
(-14.5 psi)Max.: 400 bar
(5,801.51 psi)- Precision
0.5 %
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description

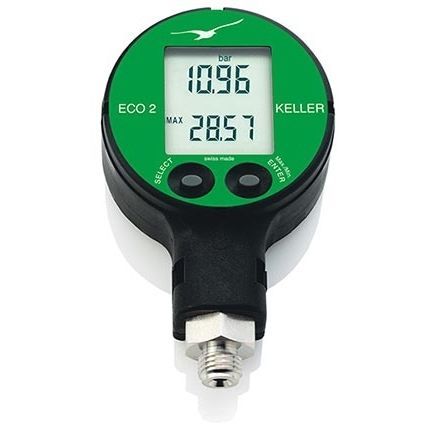

ECO 2 is a compact and economical digital pressure measuring instrument providing medium accuracy at high resolution and repeatability. The piezo resistive pressure transducer as the heart of the instrument has gone through extensive pressure- and temperature tests.
The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the Max.- or Min.- pressure since the last RESET.
ECO 2 has two operating keys. The left key turns on the instrument and is used to select the functions and the pressure units. The right key executes the selected function or unit. The right key is also used to switch between the Max.- and Min.-value.
Catalogs
ECO 2
1 Pages
