Leak calibrator MPX

levelpressure

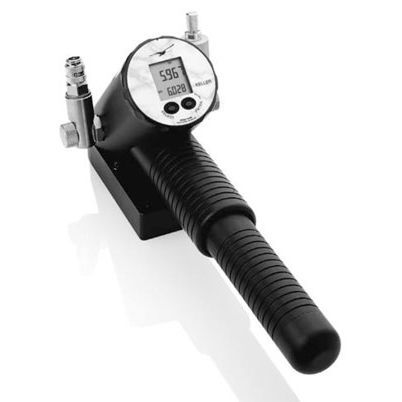

The medium-pressure calibrator (MPX) is used to generate pressure in order to check and calibrate mechanical and electronic pressure measurement devices with the help of comparative measurements. The pressure generator is accommodated together with the pressure display in a functional housing. The pressure on a test object that is fitted to the calibrator can be built up quickly, and tracking is made easy thanks to the integrated display. Test objects are connected to the medium-pressure calibrator via the Serto coupler and a connection nipple (G 1/4”). A hand pump (medium: air), integrated in the device, is used to build the pressure up to an approximate level with pulling and pumping movements; the pressure is then adjusted exactly with the help of the integrated fine-tuning valve. Measurement work is made easier by a wide range of functions, such as setting any desired pressure zero point, display of peak and trough pressure values, or leak measurements. Furthermore, the applied pressure can be displayed directly on a computer via the integrated interface (USB converter), after which it can be saved and processed or managed in any desired manner. The calibrator, including accessories, is supplied in a durable carrying case, making it ideal for assignments in the field. - Measurement accuracy: 2000 h in continuous operation - USB interface converter: included in the scope of delivery
