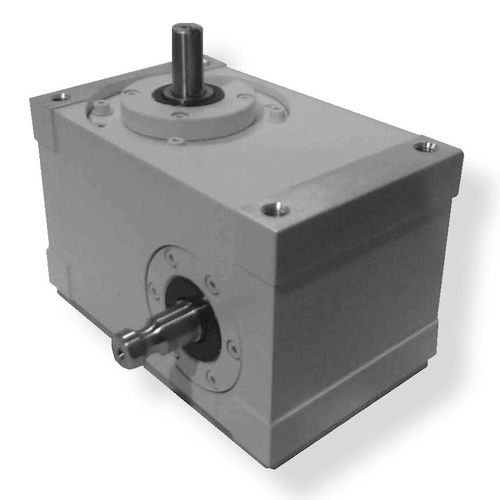

Rotary indexer MK2 series

oscillatingcamcast iron housing

The Italplant MK2 oscillator has a cam operated mechanism for producing an oscillating rotary output motion from a constant rotary input motion. A standard oscillating cycle, produced by one revolution of the input shaft, consists of two output motion periods of opposite direction, with or without dwell periods between them. The angle through which the output shaft rotates (or swings) during a motion period is called the output stroke. Available with Safety Output Torque Limiter SOTL/ATT. Features: - Rigid cast iron housing - Hardened and ground steel cam - Heavy duty high precision Italplant cam followers - Pre-loaded taper roller bearings on both shafts - Heavy duty camshafts are standard - M.S. and special high performance cam motion - Many standard drive packages available - Flanged output shaft
