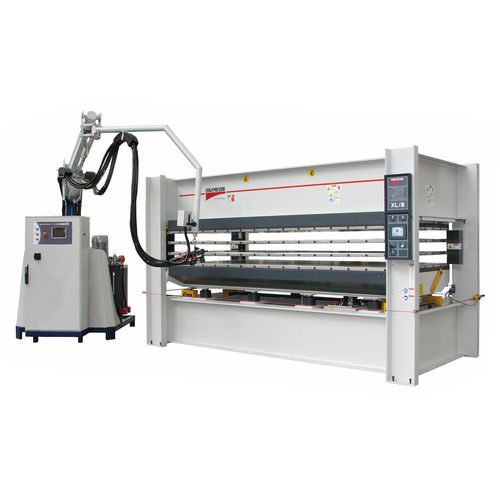

Electric press motorizedforminghot
Add to favorites
Compare this product
Characteristics
- Operation
- electric, motorized
- Function
- forming
- Other characteristics
- hot
- Force
Max.: 250 tf
Min.: 50 tf
- Overall length
Max.: 5,200 mm
(205 in)Min.: 1,300 mm
(51 in)- Overall width
Max.: 2,200 mm
(87 in)Min.: 1,300 mm
(51 in)
Description
Maximum number of rooms available: 6.
Available heating Systems: diathermie oil or water electric heater, prédisposition for connection with external heating
Systems.
Possible températures: up to 120 0 C. (more common 60 0 C
Type of heating plates available: assembled steel, solid perforated steel.
Spécifie pressure normally required from 1 to 3 Kg / cm2
Foaming technology: closed mold
Main options available of the standard presses for foaming : de-molding devices, manual or motorized handling Systems of
the injection head, differentiated température of the heating plates, rotation of the press.
