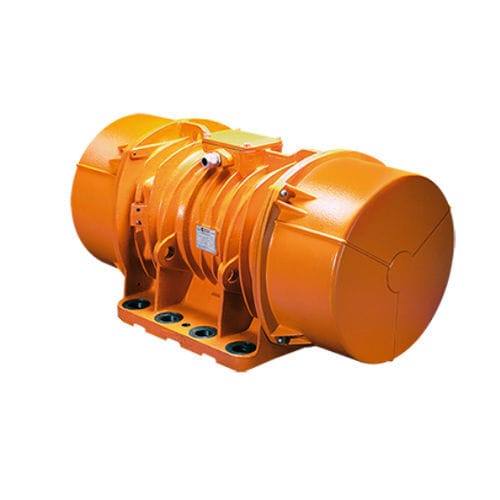

Electric vibrator MVSI series

motorizedexternalindustrial

The MVSI series represents the line of reference products for manufacturer’s of vibrating machines and plants operating in many industrial sectors and is made up of the largest range on the market, with centrifugal force values up to 30500 Kgf (300kN). The MVSI series has been conceived to guarantee higher performance in all conditions and environments and complies with the most recent IEC and EN international standards for use in atmospheres with potentially explosive powders. In particular, the MVSI series can be used in areas 21 and 22. CATEGORY II 2 D LEVEL OF PROTECTION tD A21 IP66 (ongoing upgrade to Ex tb IIIC Db) TEMPERATURE CLASS see technical details EC CERTIFICATE LCIE 05 ATEX 6163 X AREAS OF USE 21, 22 Power supply Three-phase voltage from 24V to 690V, 50Hz or 60Hz or single−phase 100-130V, 60Hz and 200-240V, 50Hz; suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile. Polarity 2, 4, 6 and 8 standard poles, 10 and 12 poles on request. Functioning Continual service (S1) at maximum declared centrifugal force and electric power. Insulation class Class F (155°C), class H (180°C) on request. Electric motor Three-phase asynchronous type. Insulated windings using vacuum encapsulating up to size 35; using the “drop by drop” trickle system with class H resin for larger sizes. Rotor is die cast aluminum.
