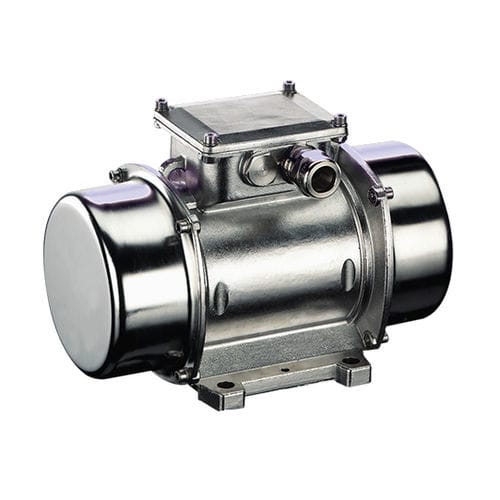

Electric vibrator MVSS series

motorizedexternalindustrial

The MVSS stainless steel series vibrators are characterized by their total protection from liquids, dusts, aggressive agents and contaminants, thanks to the stainless steel casing and external components. no EX certification Power supply Three-phase voltage from 24V to 690V, 50Hz or 60Hz or single−phase 100-130V 60Hz and 200-240V, 50Hz; suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile. Polarity 2, 4, 6 and 8 poles Functioning Continual service (S1) at maximum declared centrifugal force and electric power. Centrifugal force Insulation class Class F (155°C), class H (180°C) on request. Electric motor Three-phase and single−phase asynchronous type. Insulated windings using vacuum encapsulating up to size 35; using the “drop by drop” trickle system with class H resin for larger sizes. The rotor is die cast aluminum.
