Diaphragm pump DOSTEC AC
waterbeveragemanual

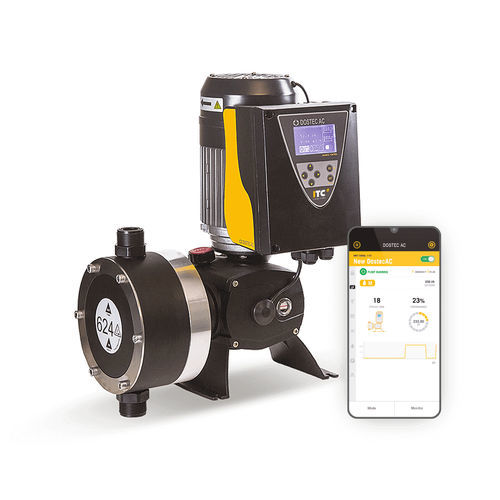

Diaphragm pump - DOSTEC AC - ITC - water / beverage / manual
Diaphragm pump - DOSTEC AC - ITC - water / beverage / manual
Diaphragm pump - DOSTEC AC - ITC - water / beverage / manual - image - 2
Diaphragm pump - DOSTEC AC - ITC - water / beverage / manual - image - 3
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Fluid
water, beverage
Operation
manual
Mobility
stationary
Domain
chemical, agriculture
Applications
metering, for control, treatment, adjustment, flow control
Material
PP, PVDF
Voltage
230 V
Other characteristics
automatic
Flow

Max.: 1,200 l/h
(317.00646 us gal/h)

Min.: 3 l/h
(0.79252 us gal/h)

Pressure

Max.: 20 bar
(290.075 psi)

Min.: 5 bar
(72.519 psi)

Power

0.43 kW, 1.2 kW
(0.58 hp, 1.63 hp)

Length

Max.: 525 mm
(21 in)

Min.: 270 mm
(11 in)

Width

Max.: 285 mm
(11.22 in)

Min.: 155 mm
(6.1 in)

Height

400 mm, 490 mm
(15.75 in, 19.29 in)

Weight

13 kg, 24 kg
(28.66 lb, 52.91 lb)

Description

Dostec AC is a diaphragm or piston dosing pump with advanced control for an accurate and efficient automatic dosing. This series allows many dosing possibilities depending on the chosen head. The flow range covers from 3 to 1200 l/h (317 gph) up to pressures of 20 bar (290 psi). The correct selection of head’s materials, PP, PVDF or S.S., makes this pump suitable for the most chemicals products used in water treatment, chemical industry, food and beverage and agriculture. Operation modes Manual: manual flow adjustment through the keyboard Analogue: dosing flow proportional to a 0/4-20mA signal Proportional to flow: proportional dosing to a water flow Proportional to pulses: stroke frequency proportional to input pulses Batch control, by volume: dosing a defined volume, after a manual, remote or time pre-set start Batch control, by time: dosing for a defined time, after a manual, remote or time pre-set start ModBus: dosing control through ModBus RTU protocol
