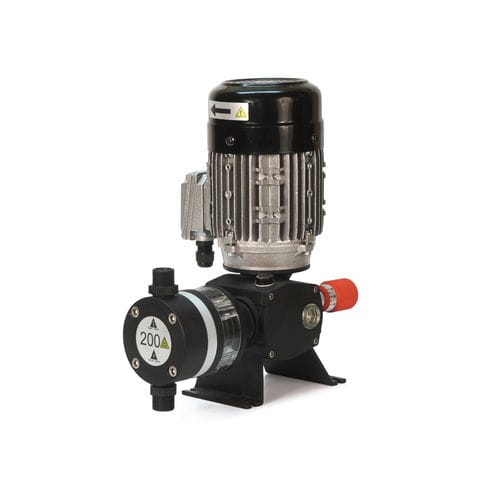

Diaphragm pump Dostec 40
waterelectricstationary

Diaphragm pump - Dostec 40 - ITC - water / electric / stationary
Diaphragm pump - Dostec 40 - ITC - water / electric / stationary
Diaphragm pump - Dostec 40 - ITC - water / electric / stationary - image - 2
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Fluid
water
Operation
electric
Mobility
stationary
Domain
chemical
Applications
metering, injection, high-precision
Material
PTFE
Voltage
400 V, 230 V, 110 V
Other characteristics
adjustable, flow
Flow

Max.: 600 l/h
(158.50323 us gal/h)

Min.: 2.5 l/h
(0.66043 us gal/h)

Pressure

Max.: 20 bar
(290.075 psi)

Min.: 4 bar
(58.015 psi)

Power

0.37 kW
(0.5 hp)

Height

370 mm
(14.57 in)

Weight

10 kg
(22.05 lb)

Description

DOSTEC 40 dosing pumps are heavy duty, high precision, piston or diaphragm pumps for dosing liquid products. This series allows many injection possibilities depending on the head being chosen. The available heads are from 2,5 to 600 l/h for the piston series, and from 5 to 300 l/h for the diaphragm series. DOSTEC 40 dosing pumps are manufactured with materials that can resist most chemicals products, even acids. They are designed for all sorts of processes where it is necessary to dose a product into a hydraulic network, such as: food, textile, chemical industry, water treatments, etc. Dosing flow of each module is adjustable independently with no need to stop the pump from 0% to 100% of its capacity.
