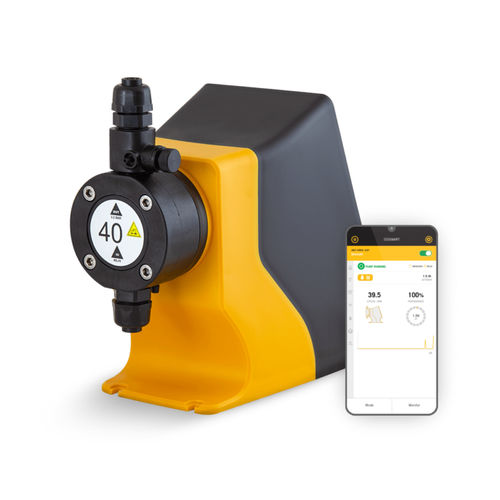

Dosing pump DOSmart AC

for chemicalsstepper motor-drivendiaphragm

DOSmart AC is a series of dosing pumps with a step motor and advanced control functions to automate precisely and efficiently the dosing of chemicals in liquid state. This series of pumps is characterized by high precision, extensive regulation (1:3000) and high suction capacity even with viscous products. The flow range covers needs from 1.5 to 60 l/h at a pressure of up to 16 bar. The choice of the correct head material between PP, PVDF and stainless steel allows the dosing of any commonly used chemical in the water treatment, chemical, food and agriculture industries. There is an APP available for DOSmart AC pumps which allows to monitor and control easily the unit remotely. The APP also has the option to receive alarm messages through SMS and email. Highlights: - High suction capacity - Flow calibration - Analog control (0/4-20mA) - Proportional pulse control - Batch dosing control - Manual Flow control Advanced Dosing Functions: - (ST) STANDARD: 100% Operation | 50% Operation - (SS1) SLOW SUCTION: Slow suction cycle for a reliable dosing for high viscosity fluids - (SS2) SLOW SUCTION AND DISCHARGE: Slow suction cycle for a reliable dosing for high viscosity fluids
