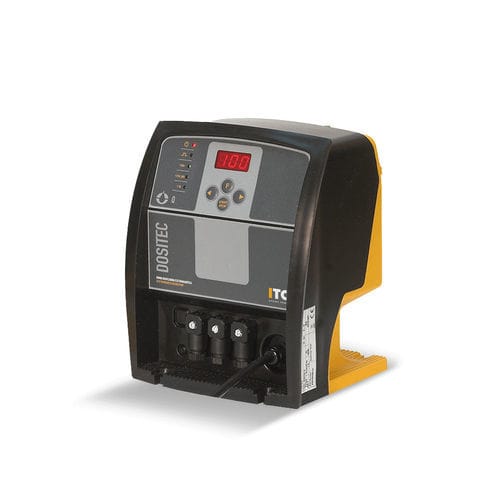

Diaphragm pump Dositec Qwaterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- metering, dosing, service, feed
- Flow
Min.: 2.5 m³/h
(88.28667 ft³/h)Max.: 20 m³/h
(706.29333 ft³/h)- Pressure
7 bar, 8 bar, 10 bar, 20 bar
(101.526 psi, 116.03 psi, 145.038 psi, 290.075 psi)- Power
37 W, 58 W
(0.05 hp, 0.08 hp)- Length
190 mm
(7 in)- Width
172 mm
(6.77 in)- Height
210 mm
(8.27 in)- Weight
3 kg, 3.8 kg
(6.61 lb, 8.38 lb)
Description
The dosing pumps DOSITEC are heavy duty, high precission, electric diaphragm pumps for dosing liquid products.
DOSITEC dosing pumps are manufactured with materials that can resist most chemicals products, even acids. They are designed for all sorts of processes where it is necessary to dose a product into a hydraulic network, such as: food, textile, chemical industry, water treatments, etc. (See materials in Technical Features). In case there is any doubt about compatibility of materials with the products to be used please contact ITC S.L. Technical Service.
The metering pump has been designed to feed liquids with capacities from 0 to 15 l/h and pressures from 0 to 10 bar. They also include a conexion for a level switch.
