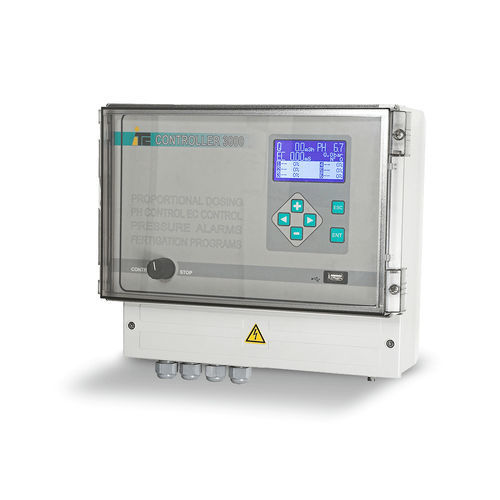

PH controller 3000

Controller 3000 is a Fertigation Controller for the dosage of 6 different Products and on-line Control of the most important Parameters to adjust for each area in an Irrigation System: Flow, pH, Conductivity and Pressure. Inputs Flow meter: Reading of the instantaneous Water Flow in the System Electrical Conductivity (EC): Reading of the Water Conductivity in the System pH: Reading of the Water pH in the System Pressure: Reading of the Pressure in the System Inputs of Remote Control Channels A/B Fertigation Programme Inputs (Controller 3000-6/12): Information Inputs about the enabled Irrigation Area: By the signal of a simple Irrigation Programmer, Controller 3000 identifies the enabled Irrigation Area and will carry out the previously programmed Treatment for this Area Outputs 6 analogue Outputs for Metering Pumps Independent Alarms Outputs for Flow, EC, pH and Pressure USB1 Port for a USB Memory Device (pen drive): it allows storing Records, Configuration and Programming of the Controller 3000, and to load a new Configuration and Programming previously executed by the Fertigation SCADA installed in the PC USB2 Port for the connection to PC. It allows connecting the Controller to a computer with the Organic Irrigation SCADA installed, so you can visualize in real time the development of the Sensors Readings and Dosing Pumps Adjustment Fertigation SCADA PC Software for Data Supervision, Control and Acquisition: Graphic Visualization in real time of all the variables executed by Controller 3000. Graphs about the Development of Readings with maximum and minimum Values. Table with Records exportable to a Spreadsheet.
