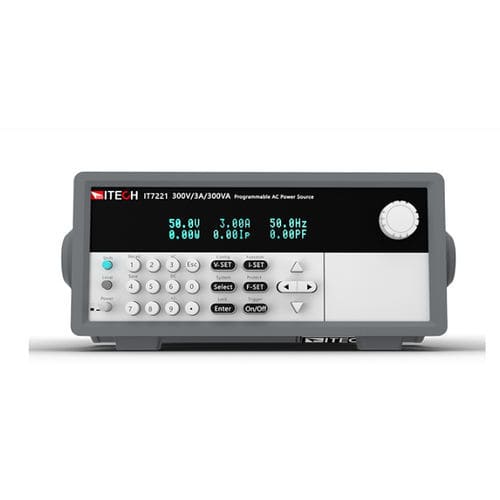

AC/DC power supply IT7200

built-in2Ufor industrial applications

IT7200 series programmable AC/DC power supplies are designed to provide cost-effective testing solutions for R&D, production and laboratories. It is a bench top unit as well as a rack mounted one. It is only in a 2U half rack, but the max. power can output 300VA or 600VA. Its built-in USB/LAN interface allows for easy ATE integration and remote monitoring of data without additional costs. IT7200AC/DC power supply has powerful waveform editing and simulation functions and full protection. Through functions such as LIST, waveform customization or harmonic simulation, it can simulate various power grid disturbance waveforms. For example, voltage sag, short-term power failure, and IEC61000-4-11 regulatory standard waveform. The product is widely used in testing of small home appliances, industrial IoT, power modules, power tools, etc. ♦ Built-in AC power meter and up to 50th harmonic analysis capability ♦ Built-in rich waveforms: Sine/Square/Triangle/Sawtooth/Clip sine ♦ Up to 50th order harmonic simulation function ♦ Output modes: AC, DC, AC+DC ♦ Rich waveform editing functions: LIST/Surge&Trap/User-defined ♦ Built-in rich waveform database, including 30 harmonic distortion waveforms ♦ The start/stop phase angle of the output waveform can be set ♦ Free Demo software Application ♦R&D, verification and testing of small power supply manufacturing ♦Low-power home appliance PCB board power supply test ♦Industrial low-power AC servo motor testing ♦Testing of connectors, protection switches and other devices ♦Production and process control ♦Power IC device aging test ♦Automatic test system
