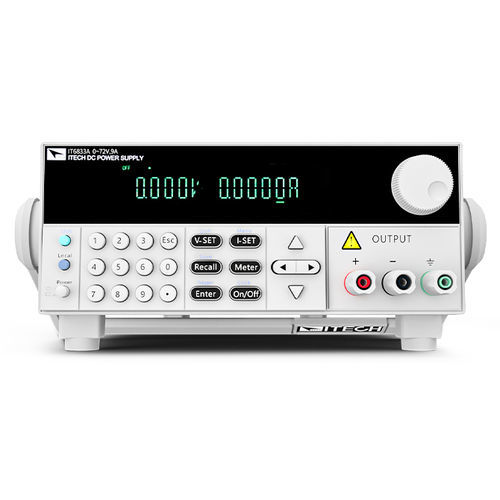

DC/DC power supply IT6800A/B

with USB outletbuilt-inprogrammable

IT6800 single channel programmable DC power supply (180W-216W) with resolution 1mV/0.1mA, users can adjust the voltage/current stepping by pressing the left and right keys to moving the cursor and programs by the front panel. OVP/OTP protection. IT6800 supports timer function and their built-in RS232 and USB communication interfaces offer you a convinience testing experience. The IT6800A Series single channel Programmable DC Power Supply generates a variety of output change sequences by sequentially operating each single step value and time. The parameters in the sequence include time units, single-step voltage, single-step current, single-step time, and the next step , looping steps, saving files, and so on. After the sequential operation is completed, when a trigger signal is received, the power is turned on until the sequence operation is completed or another trigger signal is received again. In order to avoid the pressure drop caused by the length of the wire connecting the load, the remote test allows measurement directly on the terminal of the test object to improve the measurement accuracy. S +, S is the remote measurement terminal, +, - is the output positive and negative terminals. When using the remote measurement function, it is necessary to disconnect the wires connected to the "+, -" terminals and lead S +, S to the test object. IT6800A/B series supports Output timer function，users can start this function in the Menu and set the time. The timers starts working when the unit is powered on. The unit will automatically turn off the output when the set time is due. Timing time setting range 0.1 - 9999.9S or 0.1 - 9999.9M.
