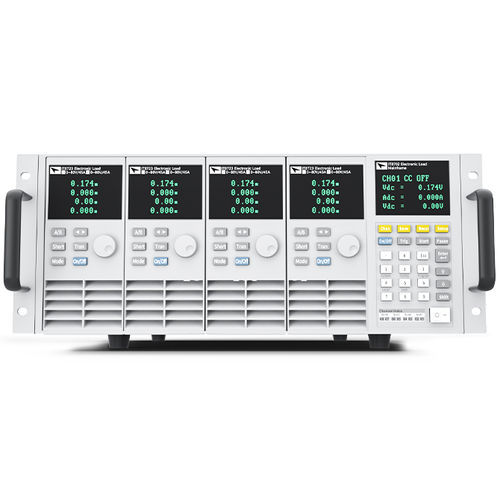

DC electronic load IT8700

programmableLANRS-232

IT8700 series programmable DC electronic load adopts removable modules design, supports up to 16 channels with mainframe extension transient mode up to 25 kHz, which improves your test efficiency, with high resolution and accuracy. Users can freely choose in the 8 load modules according to the number of channels and power requirements, controlled by mainframe control panel, or controlled by host computer software via built-in LAN / RS232 /USB interfaces. IT8700 is with adjustable slope, list function, automatic test and other functions, and can be applied to multiple or single output AC/ DC, DC / DC power converters, chargers and other power supply electronic components performance test, also can be used in ATE test system, solar cells, LED, communications testing, and other fields. ♦ Removable modules for easy system cofigurability ♦ Dual-channel module can display each channel information simultaneously without switching ♦ Single frame up to 8 channels, extended frame up to 16 channels ♦ Dynamic power distribution function for dual channels,save your cost ♦ Measurement resolution: 0.1mV/0.1mA ♦ Measure short-circuit peak current value and voltage value ♦ Measurement speed for voltage, current Up to 50KHZ ♦ Adjustable current rising / falling slope ♦ Auto-test function ♦ Simulate various waveforms with load under List mode ♦ Up to 25KHz dynamic mode ♦ Automatic test function can automatically determine whether the test results have exceeded the set specifications
