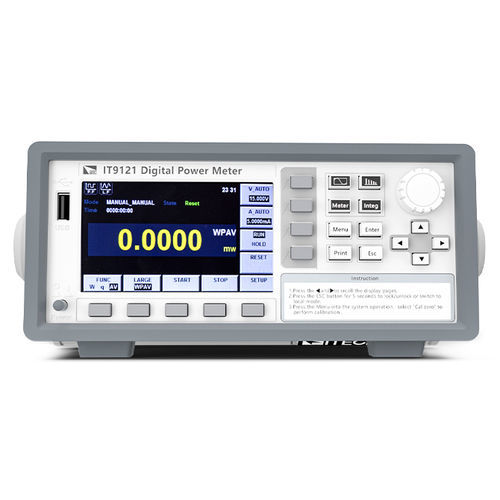

Active power power meter IT9100

digitalbenchtopUSB

The IT9100 power meter can provide the maximum input of 1000 Vrms and 50 Arms and measurement bandwidth of 100 kHz, and can be easily used for measuring thevoltage, current, power, frequency, harmonics and other parameters. The standard configuration includes USB, RS232 and LAN communication interfaces and also interfaces for USB-based peripheral devices. Users can save the measured parameters into the external storage medium. The basic voltage and current accuracy is 0.1%. Moreover, the power meter has rich integrating functions, such as the active power. It is widely applied in test of motors, household appliances, UPS, etc. Features ♦ 4.3-inch color LCD (TFT) ♦ Input range: 1000 Vrms / 50 Arms ♦ Harmonic components ♦ The accuracy of voltage and current measurement is up to 0.1% ♦ The voltage, current, power, harmonics and other parameters can be measured at the same time ♦ The power meter has a function of harmonic measurement, and can be used for measuring up to 50th harmonics *1 ♦ The power meter has rich and powerful integrating functions, and can be used for measuring electric energy which is bought or sold ♦ The interfaces for USB-based peripheral devices are provided, and the user can save data into the external storage medium ♦ Standard built-in USB, RS232 and Ethernet communication interfaces IT9100 series power meter provide a 4.3-inch color high-resolution TFT LCD for the user, and real-time values can be displayed with high brightness and remarkable colors even in a dark test environment. In addition, the IT9121 power meter provides multiple interface display styles (View1,View4 and View12).
